Front or rear rack for Old Man Mountain Elkhorn bike

Elkhorn Baggage Holder – Old Man Mountain

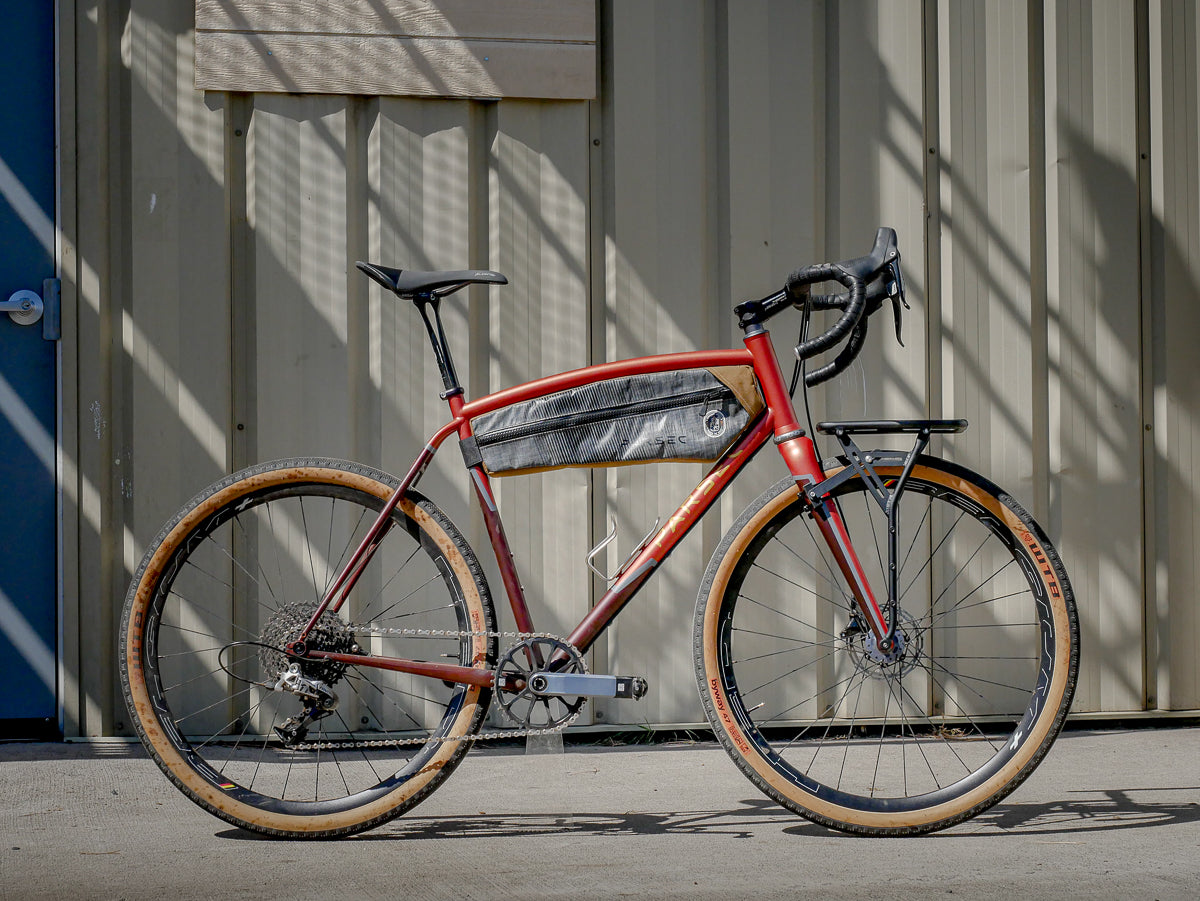

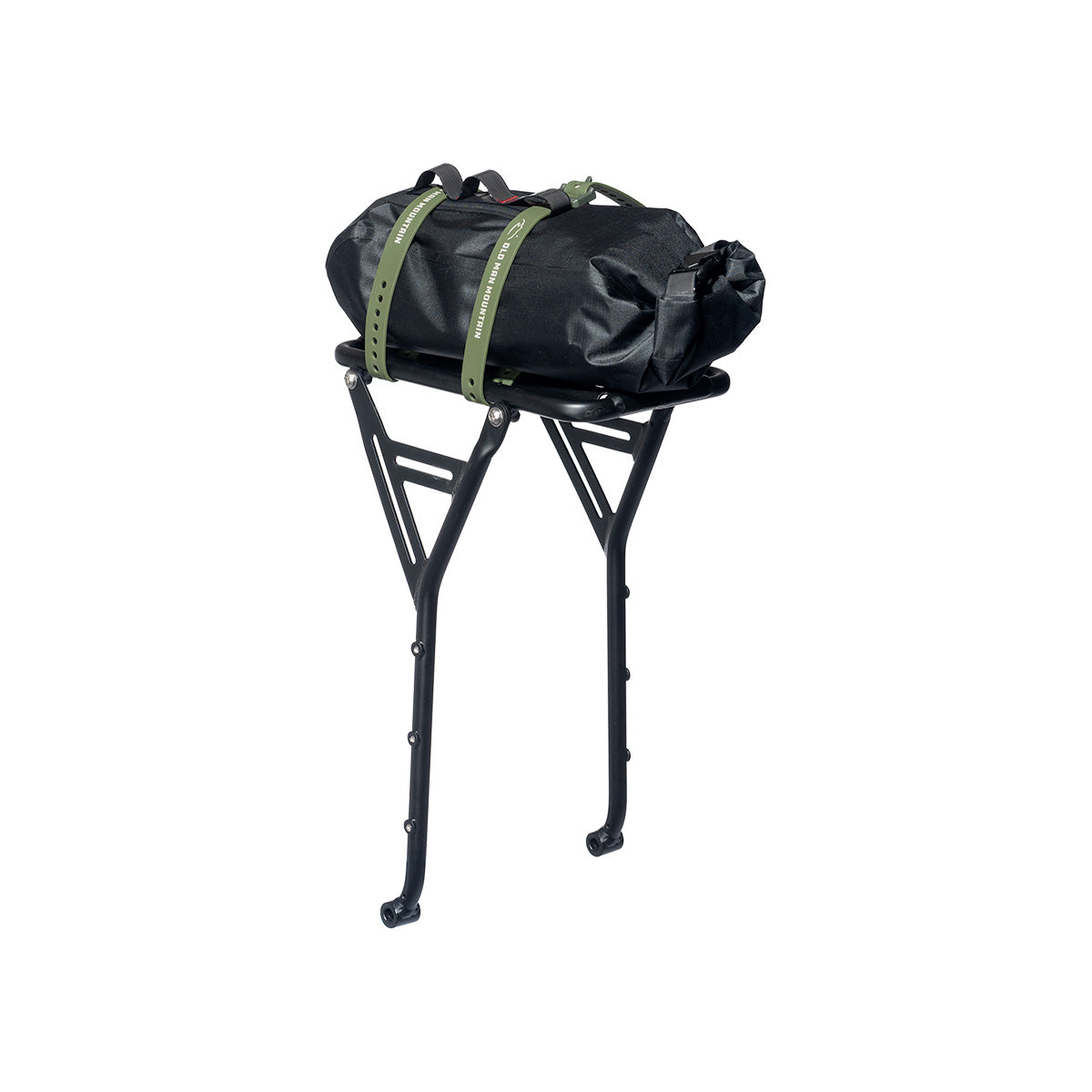

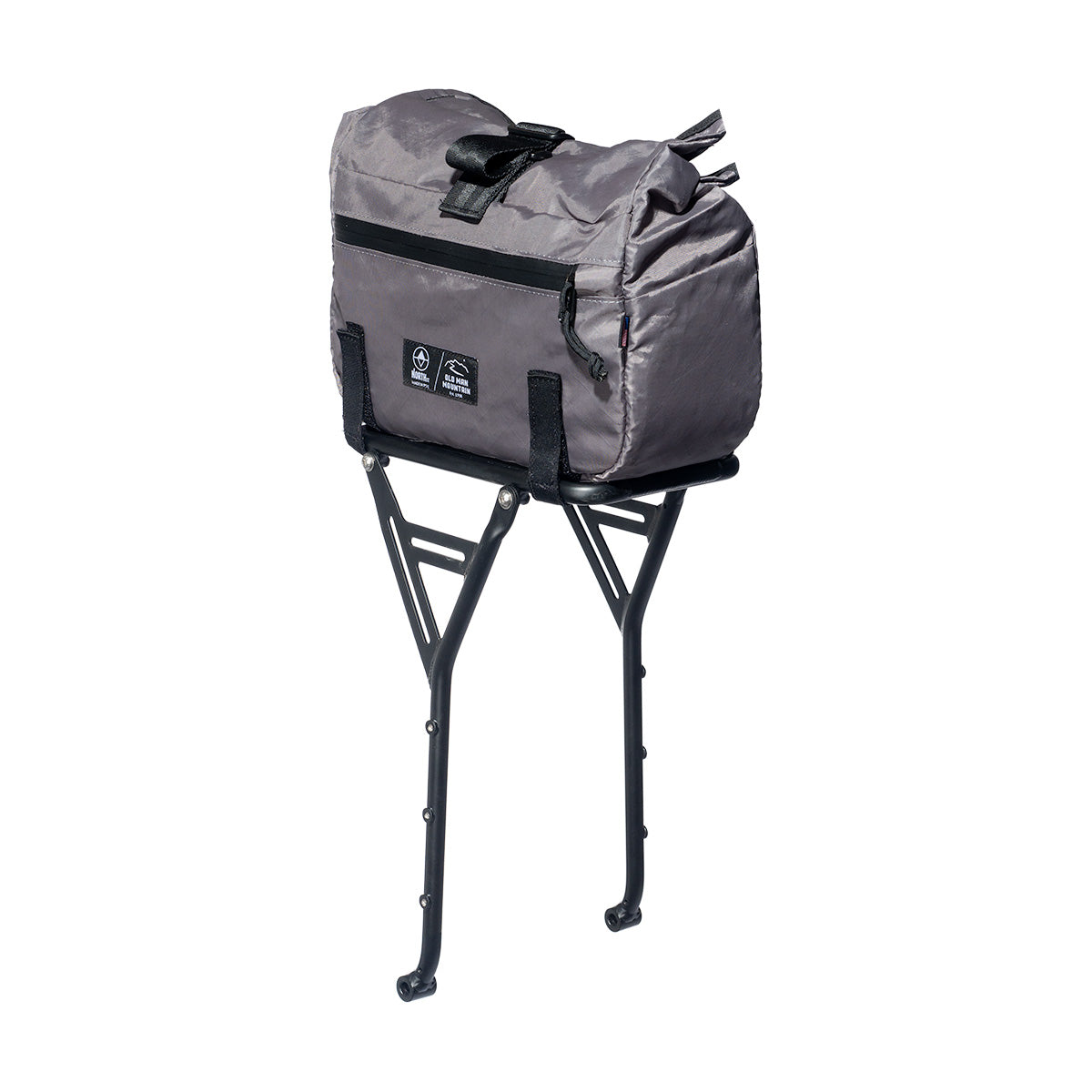

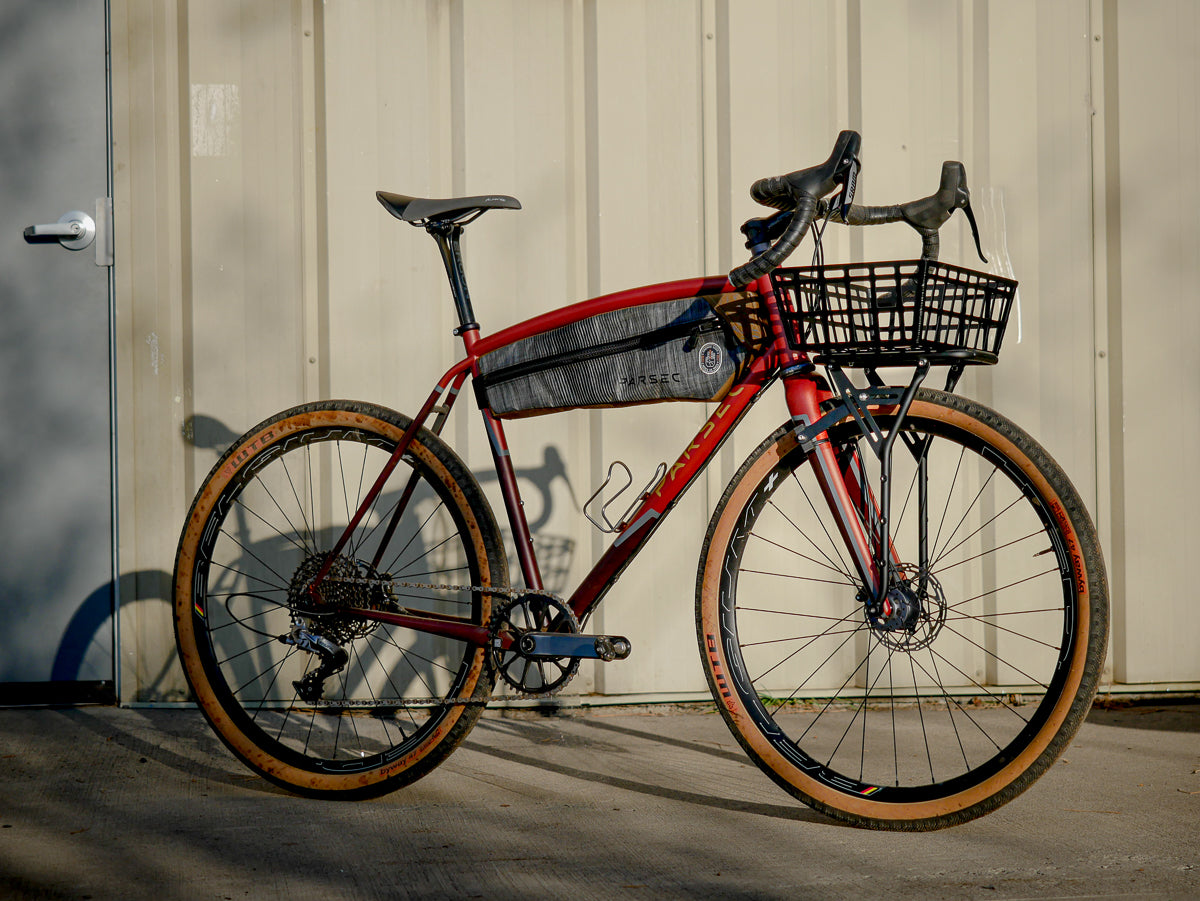

Light, minimalist but fearlessly effective, the Elkhorn is a front or rear luggage rack designed for demanding adventurers and everyday cyclists. Compatible with a wide variety of bikes, including full suspension, gravel or road models, it offers an excellent compromise between compactness, load capacity and adaptability.

Strengths

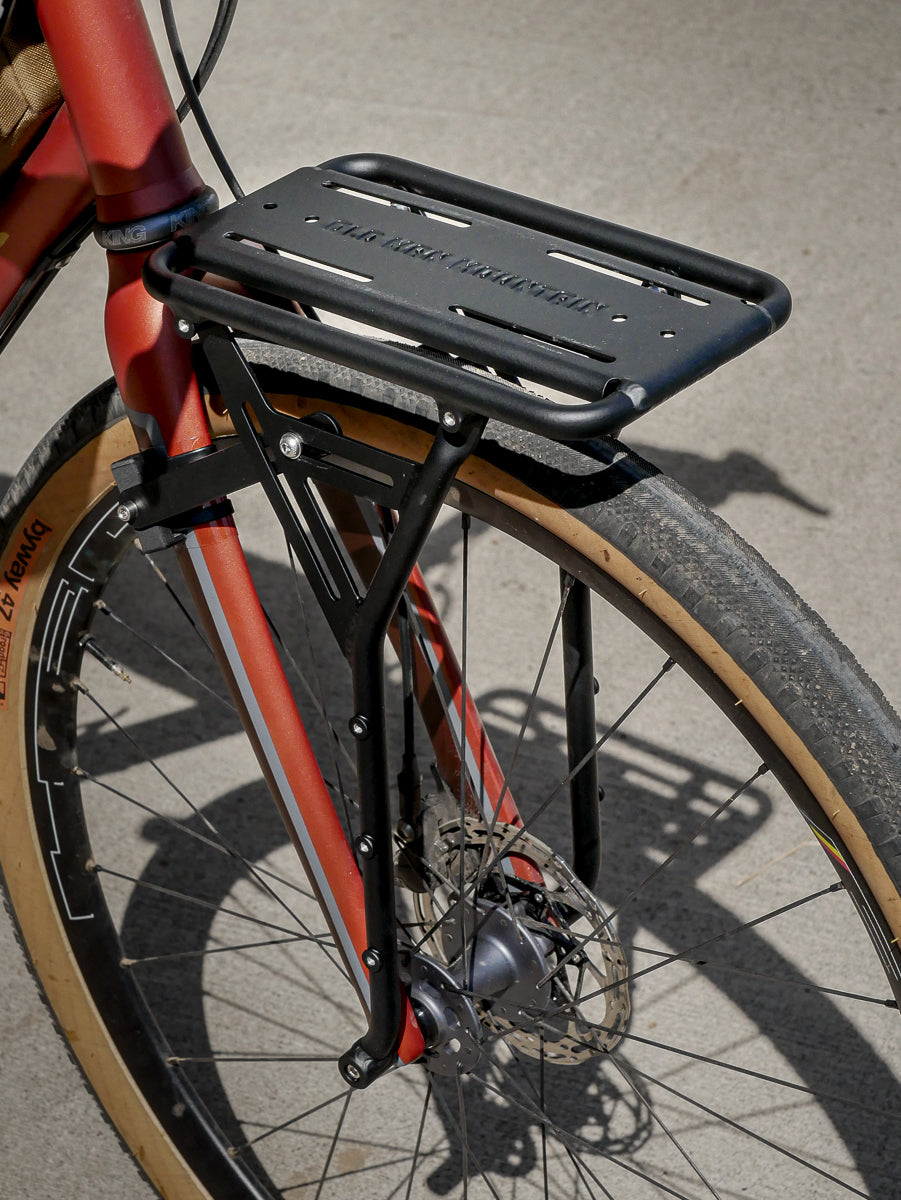

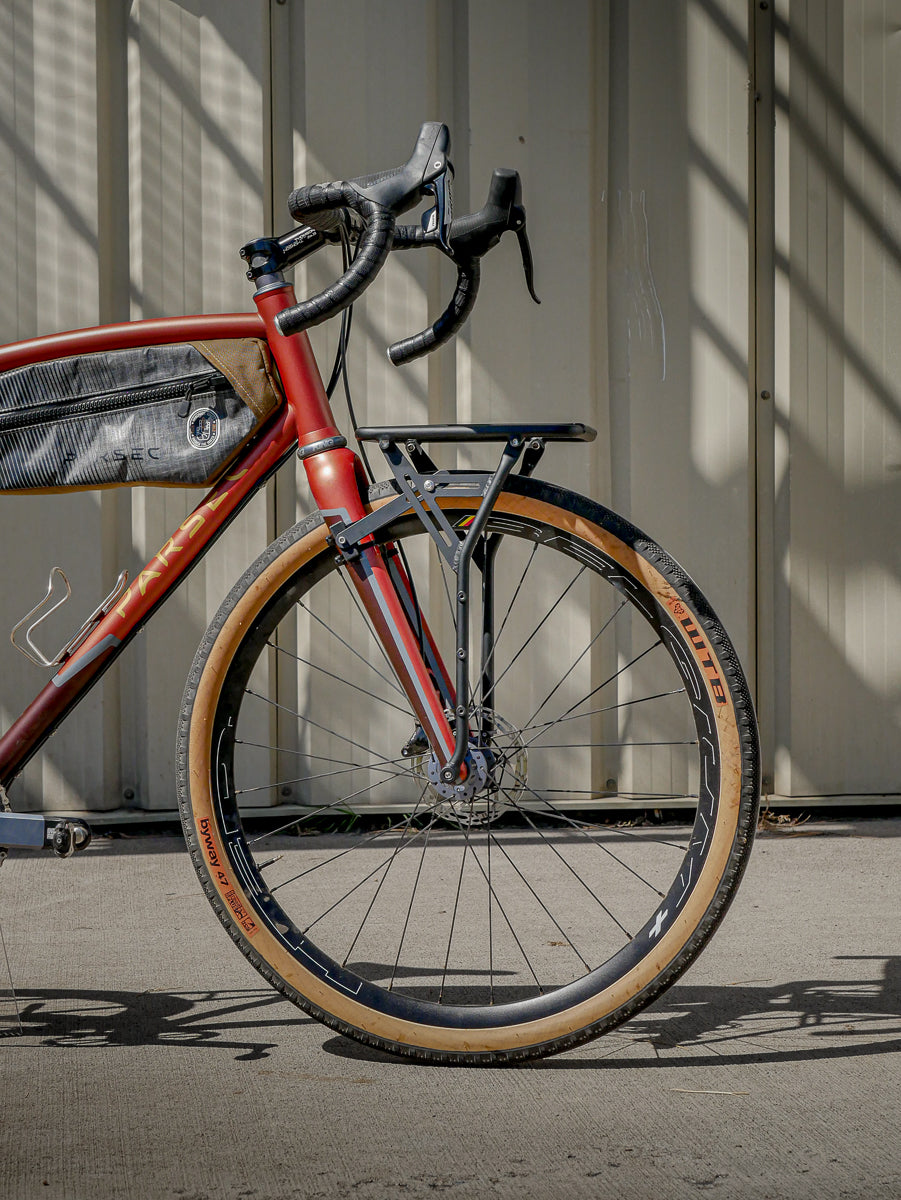

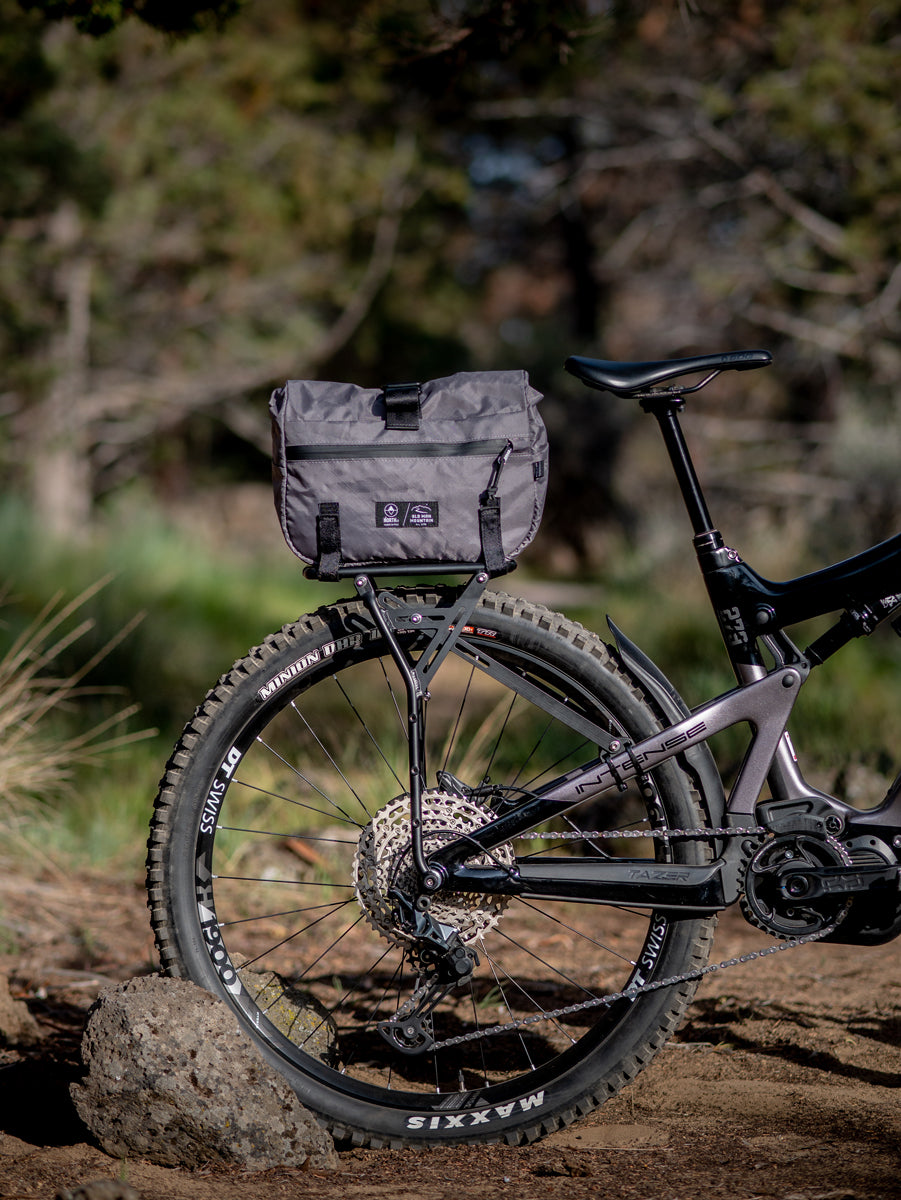

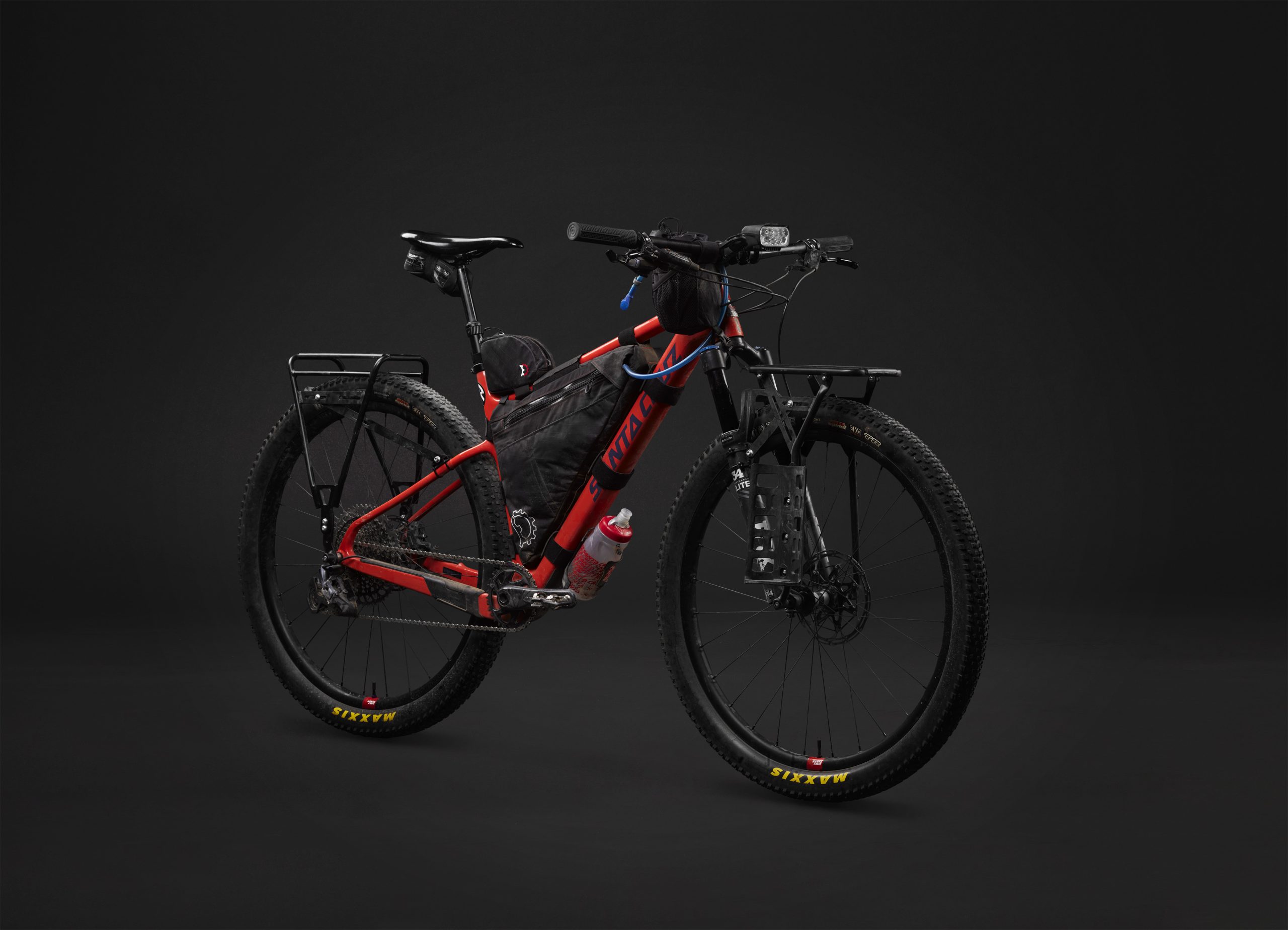

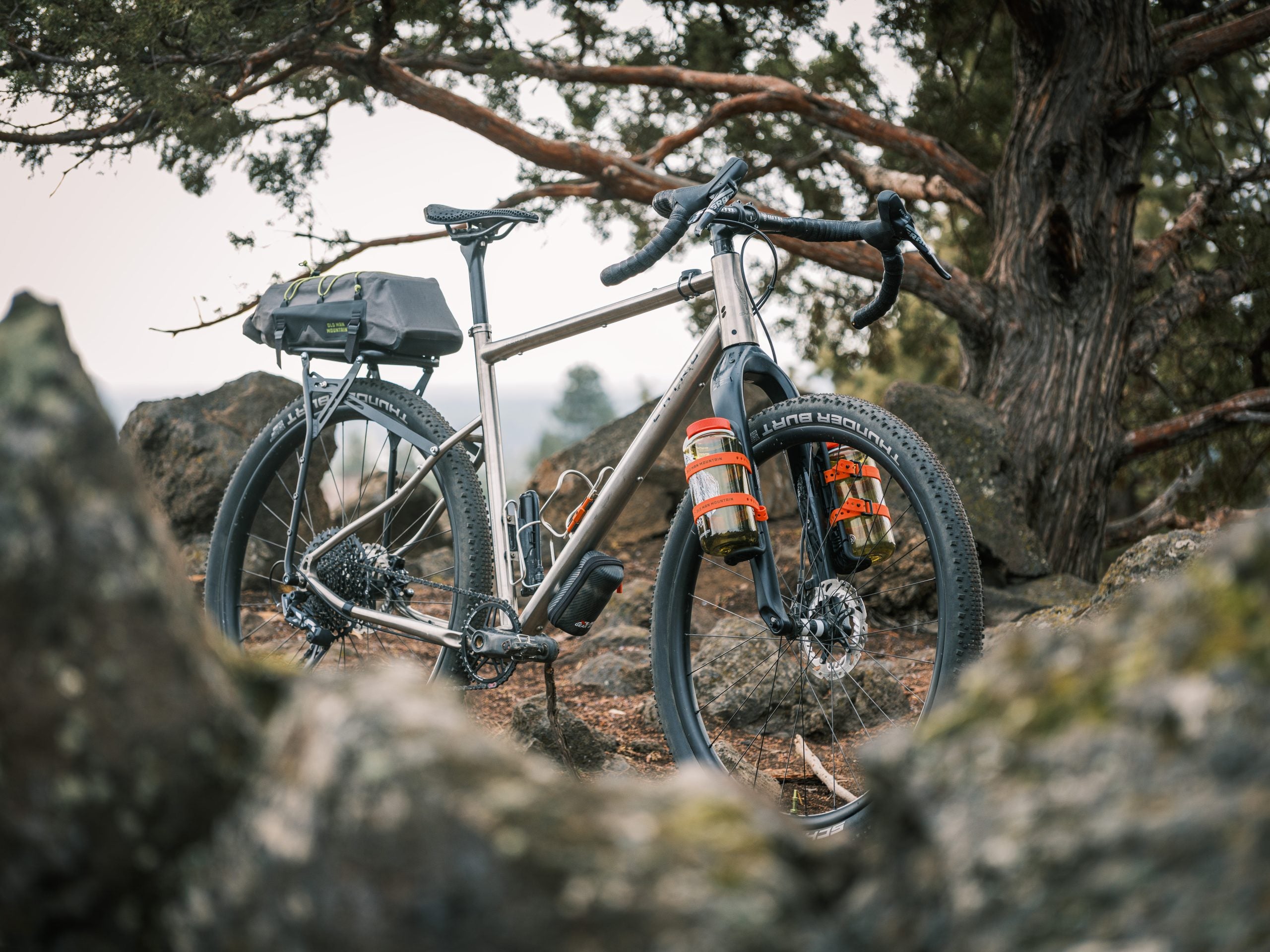

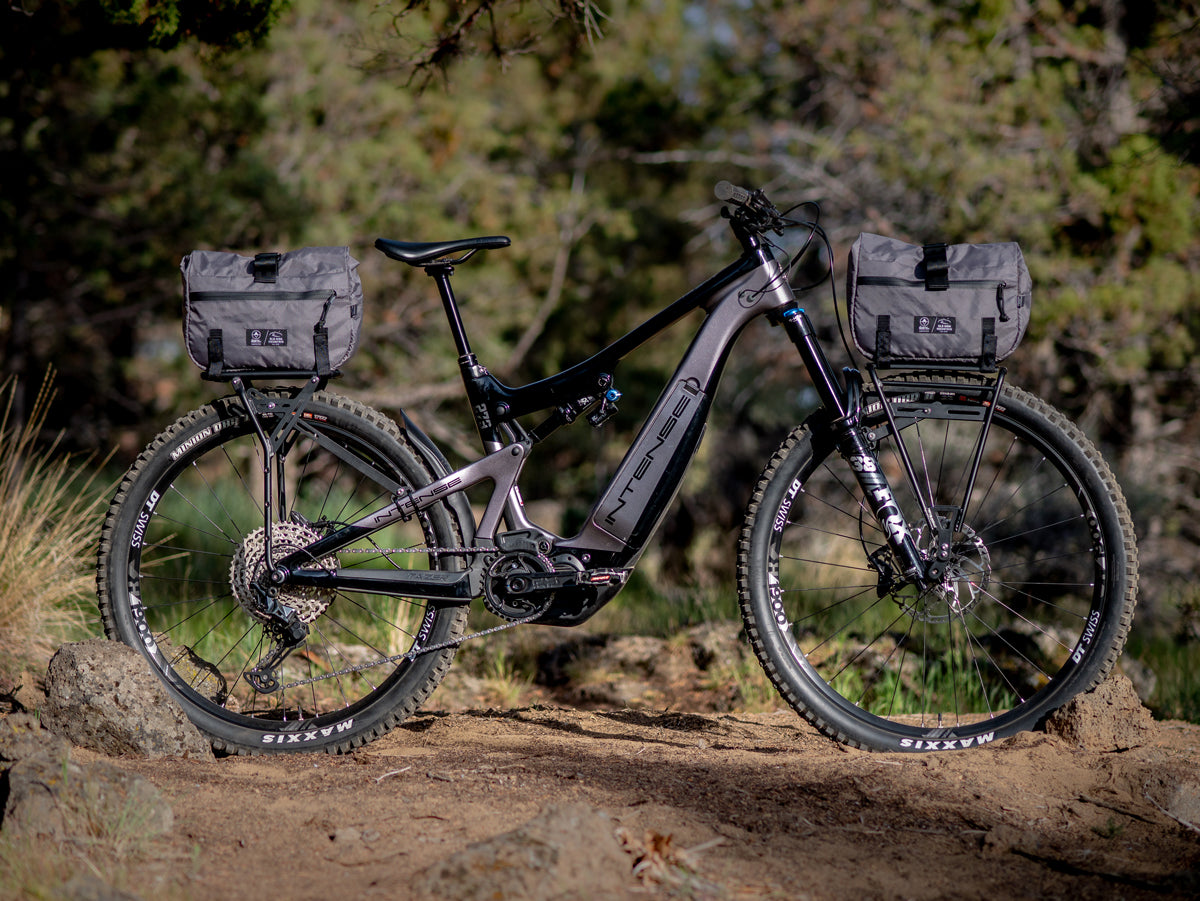

• Front or rear mounting : The Elkhorn adapts to your needs by standing on the front and back of the bike. It comes ready to be installed via carnations, but can also be fixed with the help of a Fit Kit on bicycles without eyelets (crossing axes or fasteners).

• Two heights available :

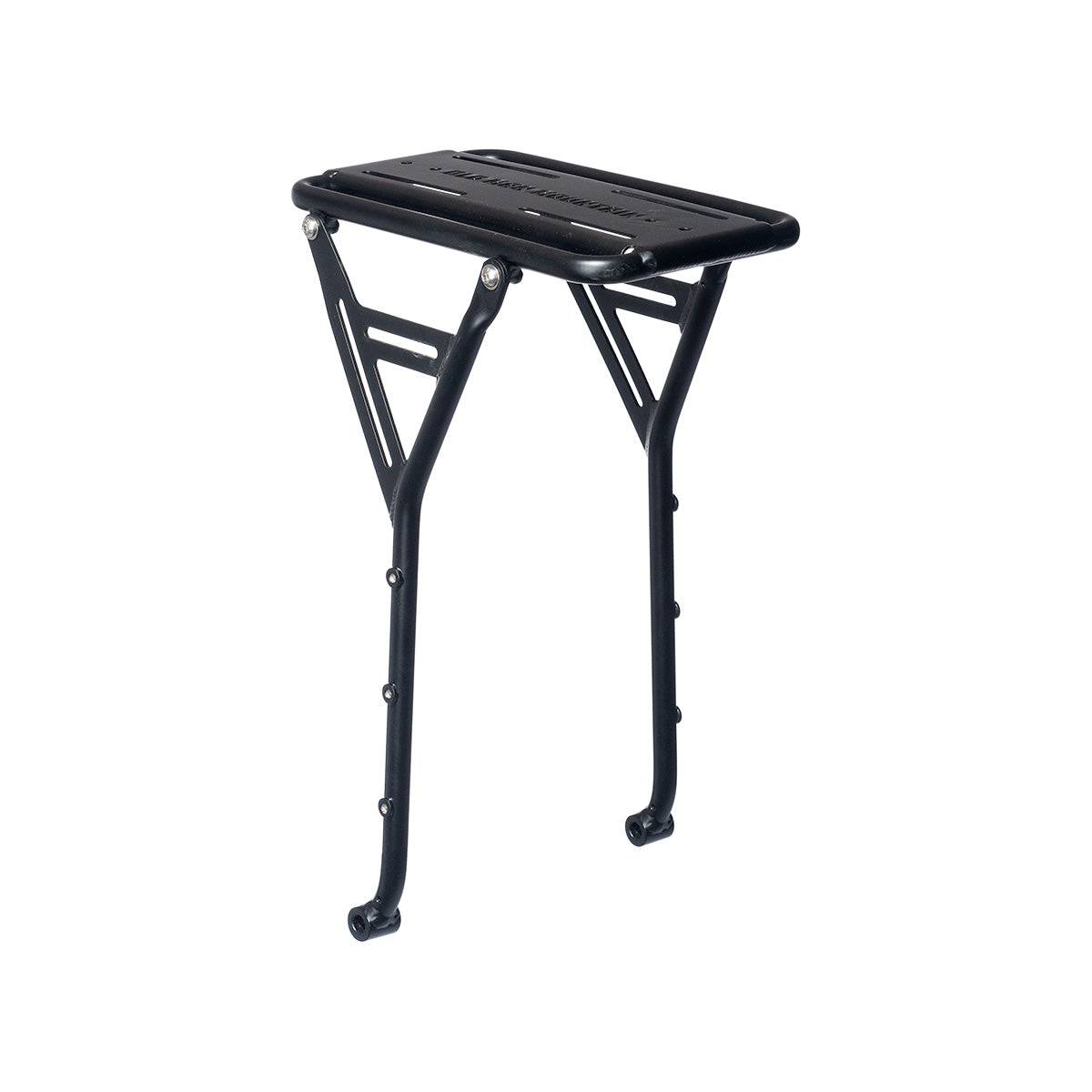

  • Short Version : For wheels 27.5" or 700c, tires up to 2.8" / 50 mm.

  • Tall Version : For wheels 29", tires up to 3.25", with optimized clearance for mud.

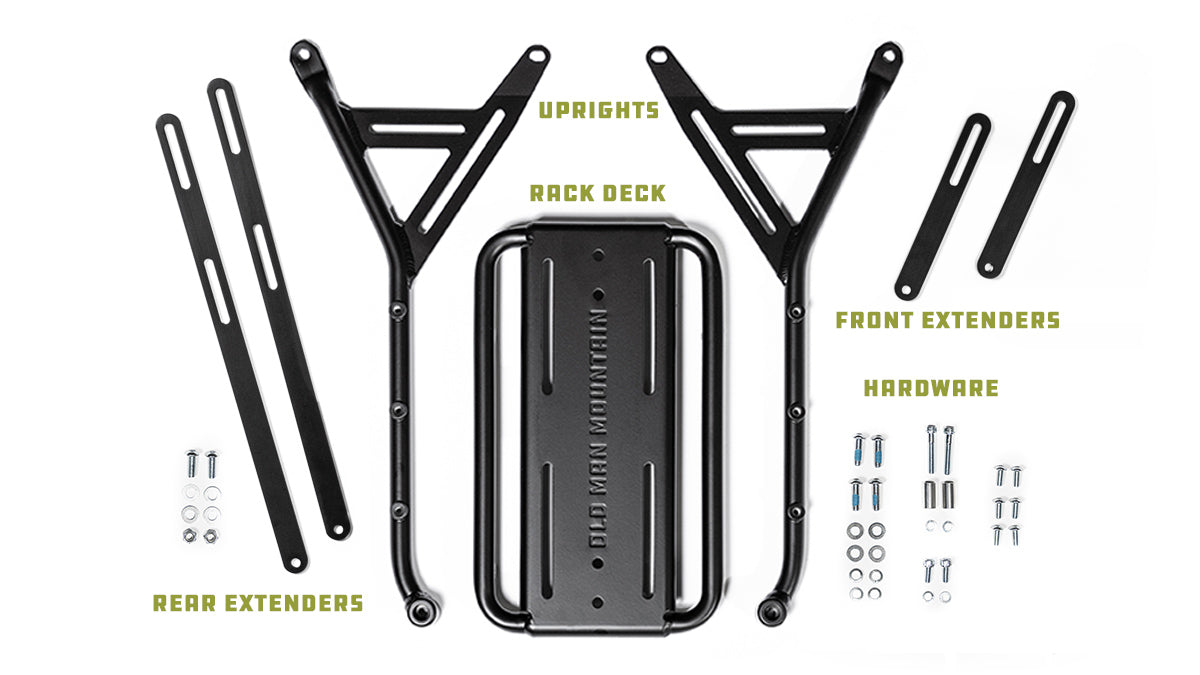

• Robust and lightweight structure : Made of 6061 aluminium, with 13 mm diameter tubes. Solid tray with peripheral edge to secure loading. Black finish.

• Load capacity of 11.3 kg (25 lbs) : Sufficient for bikepacking, long trips or daily trips, without compromising the behaviour of the bike.

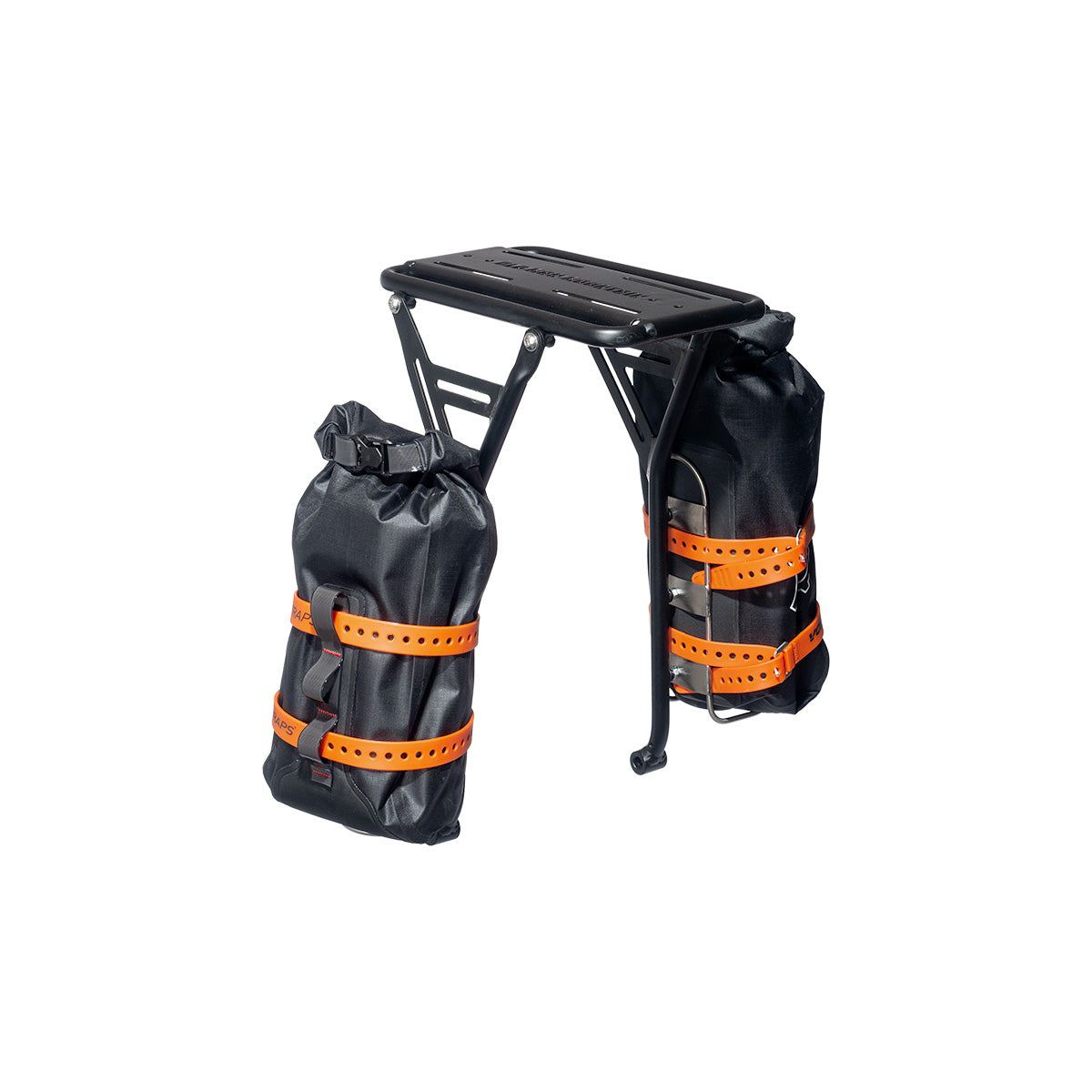

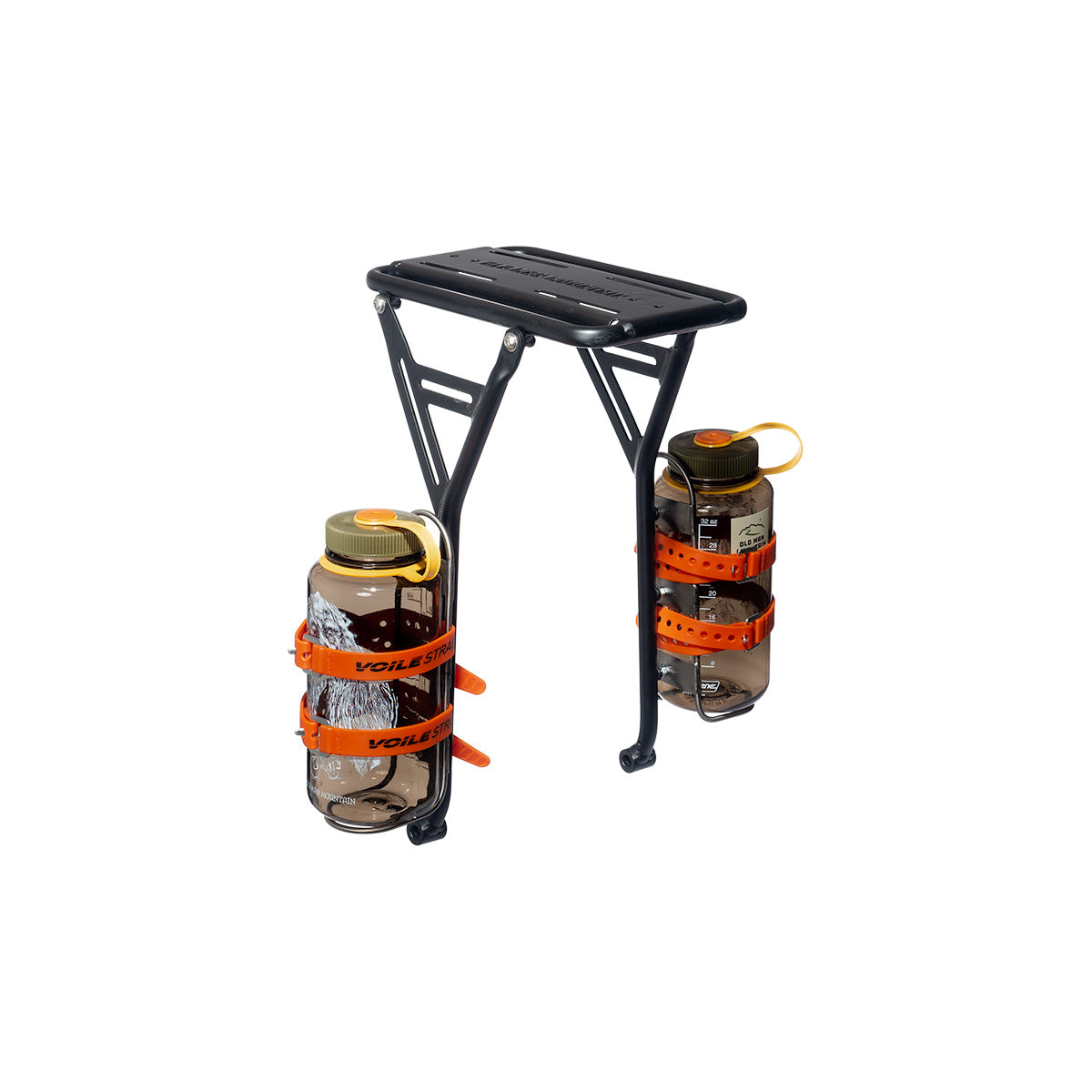

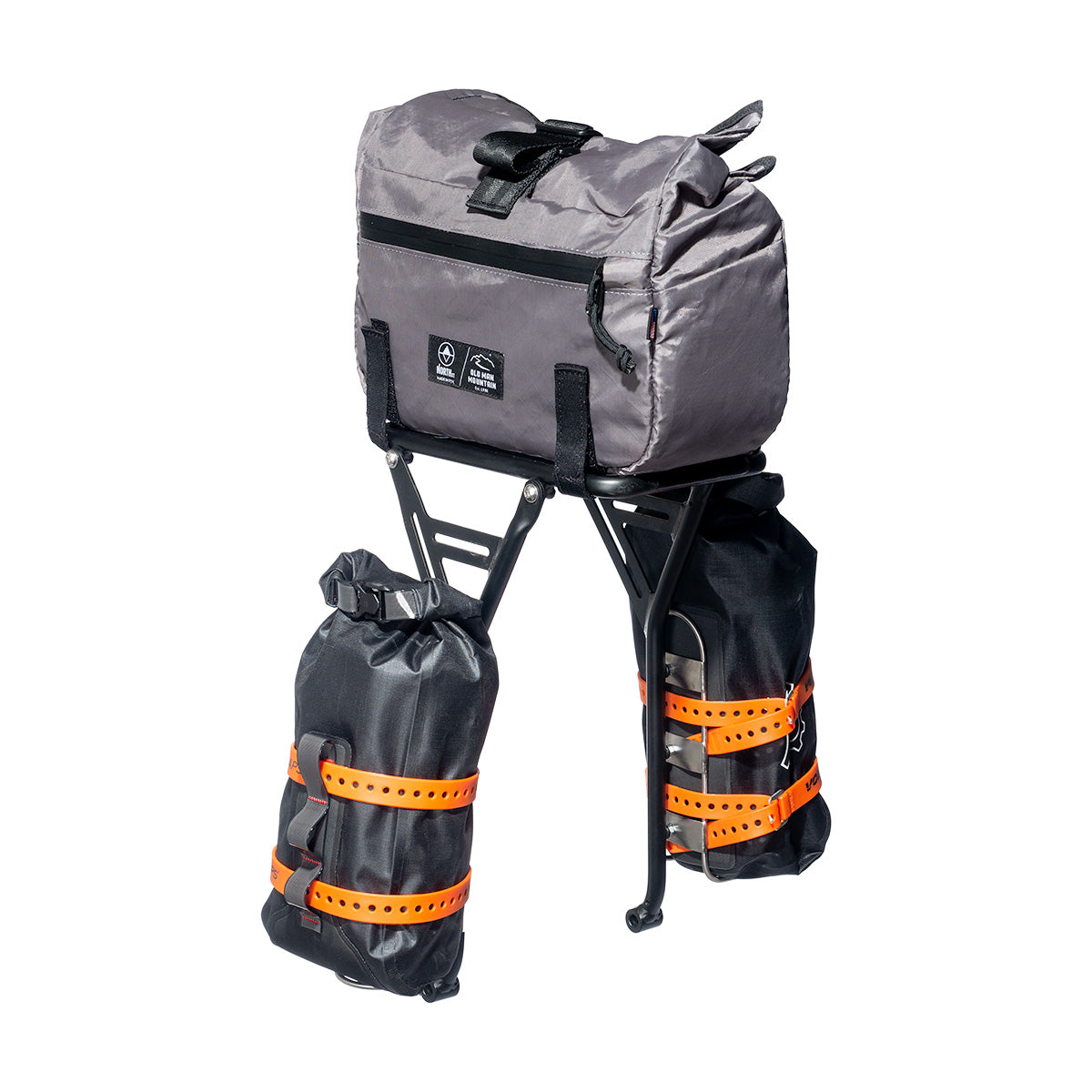

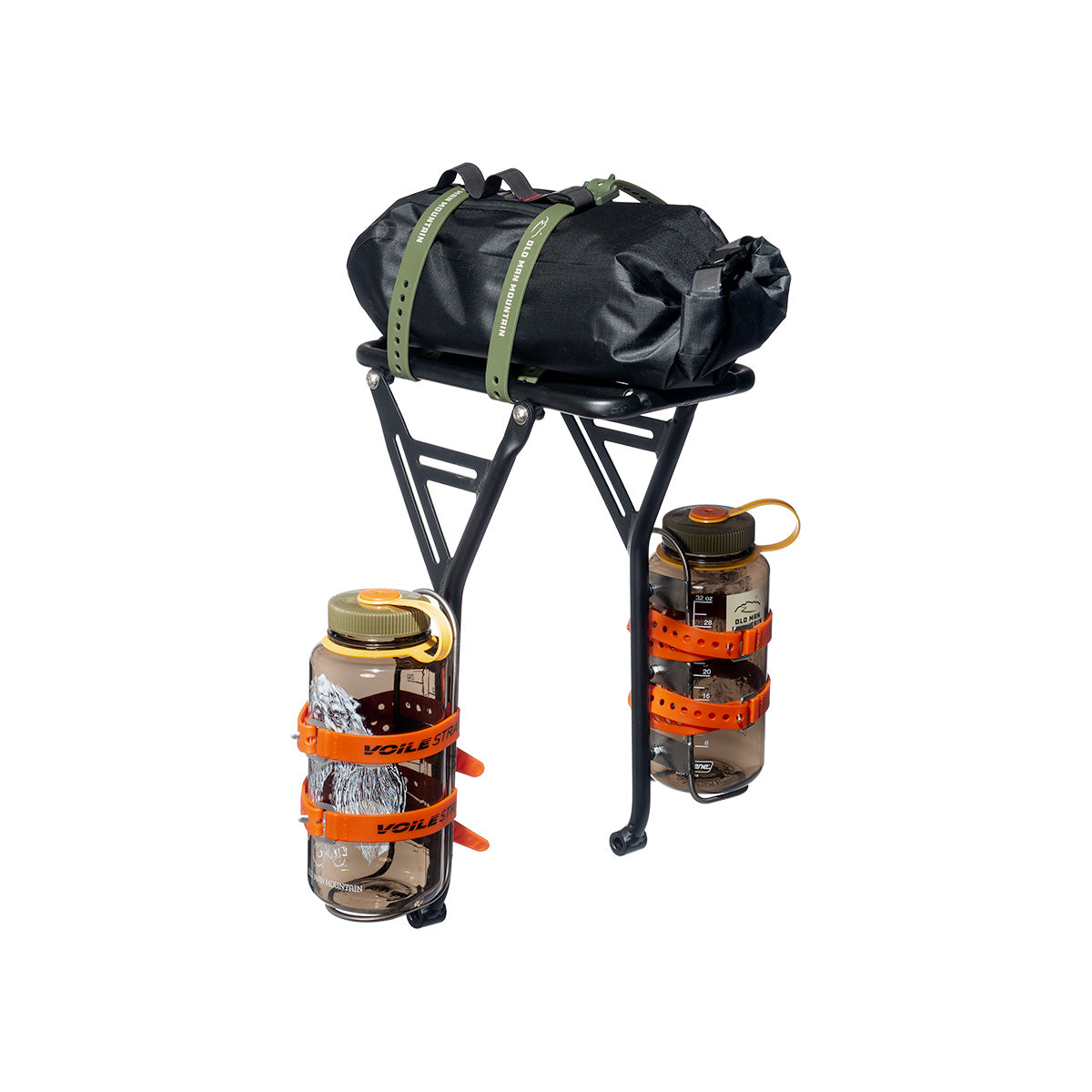

• Multi-purpose attachments : With 3-pack mounts on vertical supports, it allows mounting cans, waterproof bags, cargo cages or bolt bags.

• Compatibility with telescopic saddle rods : Thanks to its unobstructed design, the Elkhorn does not interfere with the use of a drooper post, even with short rear bases.

Technical specifications

• Material : Aluminium 6061

• Assembly : Front or rear, on carnations or via Fit Kit (crossing axis or QR)

• Plate dimensions : 16,1 x 26,6 cm

• Weight :

  • Short version: 623 g (with extension 6")

  • Tall version: 652 g (with extension 6")

• Charge maximum : 11.3 kg

• Tire compatibility :

  • Short: up to 27.5" x 2.8" or 700c x 50 mm

  • Tall: up to 29" x 3.25"

• Height of attachment point to platform :

  • Short : 371 mm

  • Tall: 420 mm

• Finish : Matted black heat coated

• Manufacture Taiwan

• Guarantee : For life

The Elkhorn is the ideal solution for those looking for a compact, flexible and compatible luggage rack with maximum bikes. Whether it's for a bikepacking ride in the mountains, a bike trip or your daily trips, it's ready to follow you, long-term.
