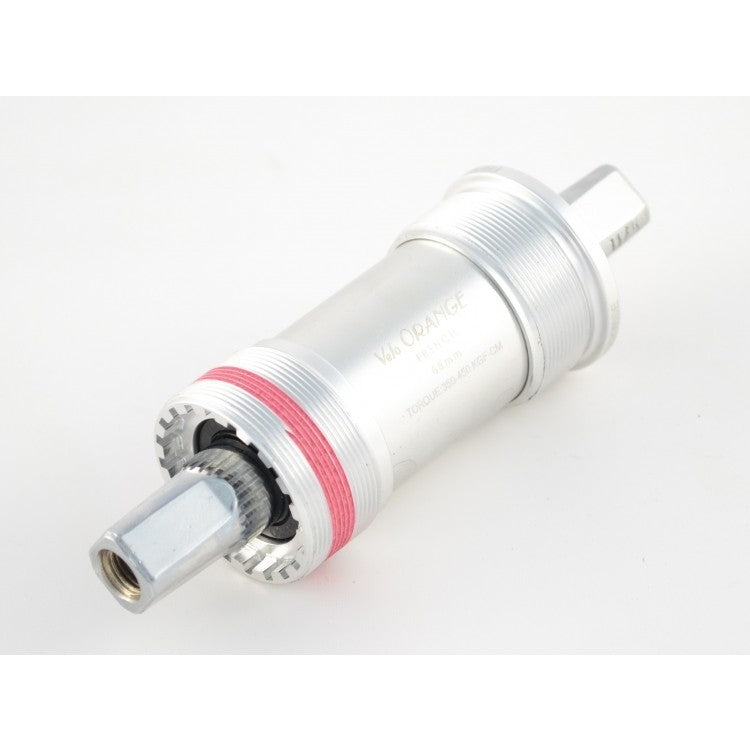

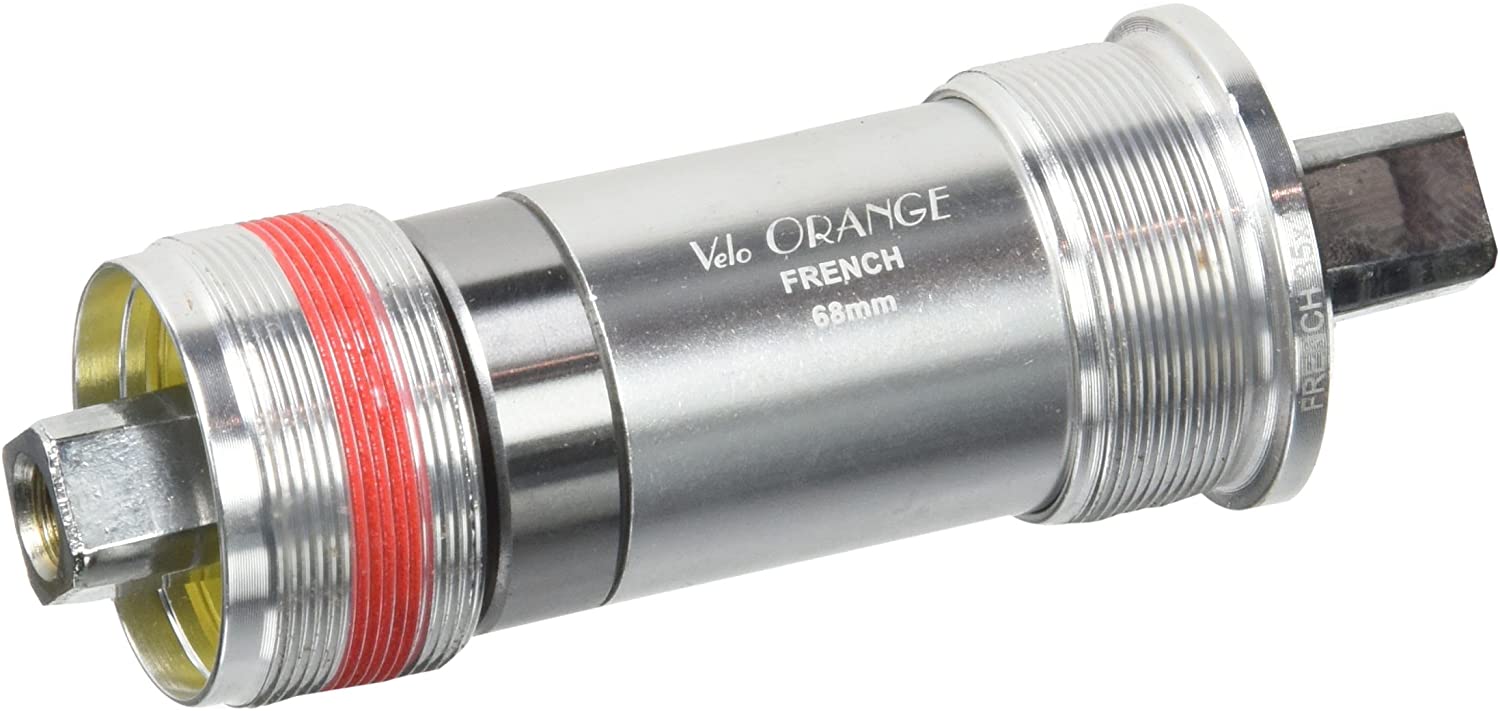

Bottom bracket Vélo Orange with French thread

Bottom bracket Vélo Orange with French thread

€59,99

Tax included.

Livré sous 8 à 12 jours

Axle length: 103 mm

103 mm 107 mm 110 mm 113 mm 116 mm 118 mm 120 mm 122 mm

Paiement sécurisé
Livraison gratuite dès 99€*
Retours 30 jours

French threaded pedal case of the American brand Vélo Orange. Ideal to restore a vintage bike to the French thread. Totally waterproof.

Order the length above if your current case is between two sizes available here.

Characteristics:

Axis length: 103 to 122 mm
Case width: 68 mm
Weight: 258 g in 110 mm
JIS standard square axis
Steel axis
Alumnium threaded guide

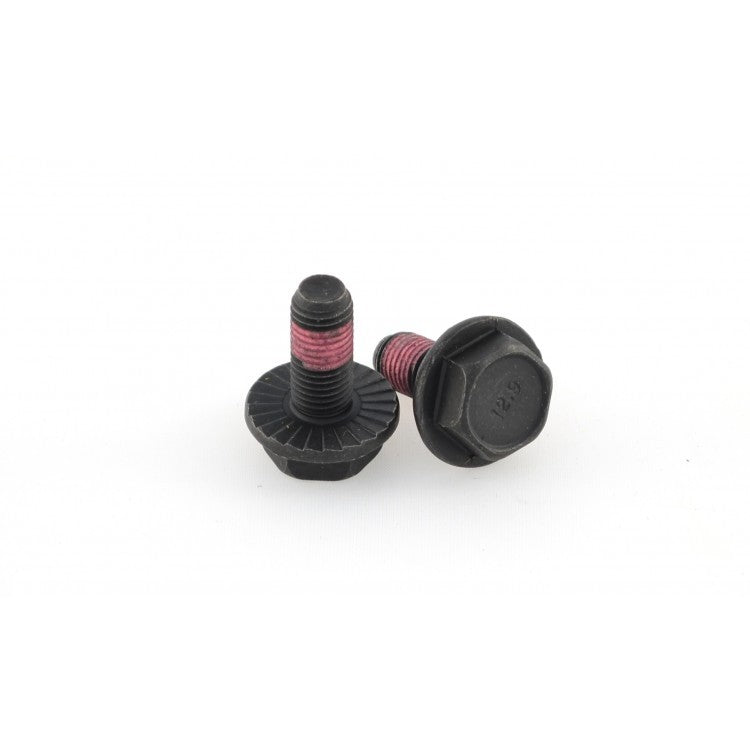

Basic screws provided

On one pedal case with french thread, the left bowl is screwed in the direction Schedule, the right bowl (side chain) is also screwed in the direction Schedule. This can be useful for you to know what type of enclosure you need to use.

French threading (35x1mm): French threading is a type of threading used mainly on old French bikes and some classic bikes. The dimensions of the French thread are 35 millimetres of external diameter with a 1 millimetre pitch. The step is the distance between two adjacent ridges in the thread, and in the case of the French thread it is 1 mm.
